1.2G 1.2GHz 1.6W 2W VTX Switchable Video Transmitter Module 1.2G 9CH VRX 1200mhz Video Receiver with Antenna For FPV Drones

1.2G 1.2GHz 1.6W 2W VTX Switchable Video Transmitter Module 1.2G 9CH VRX 1200mhz Video Receiver with Antenna For FPV Drones

$65.99
Color

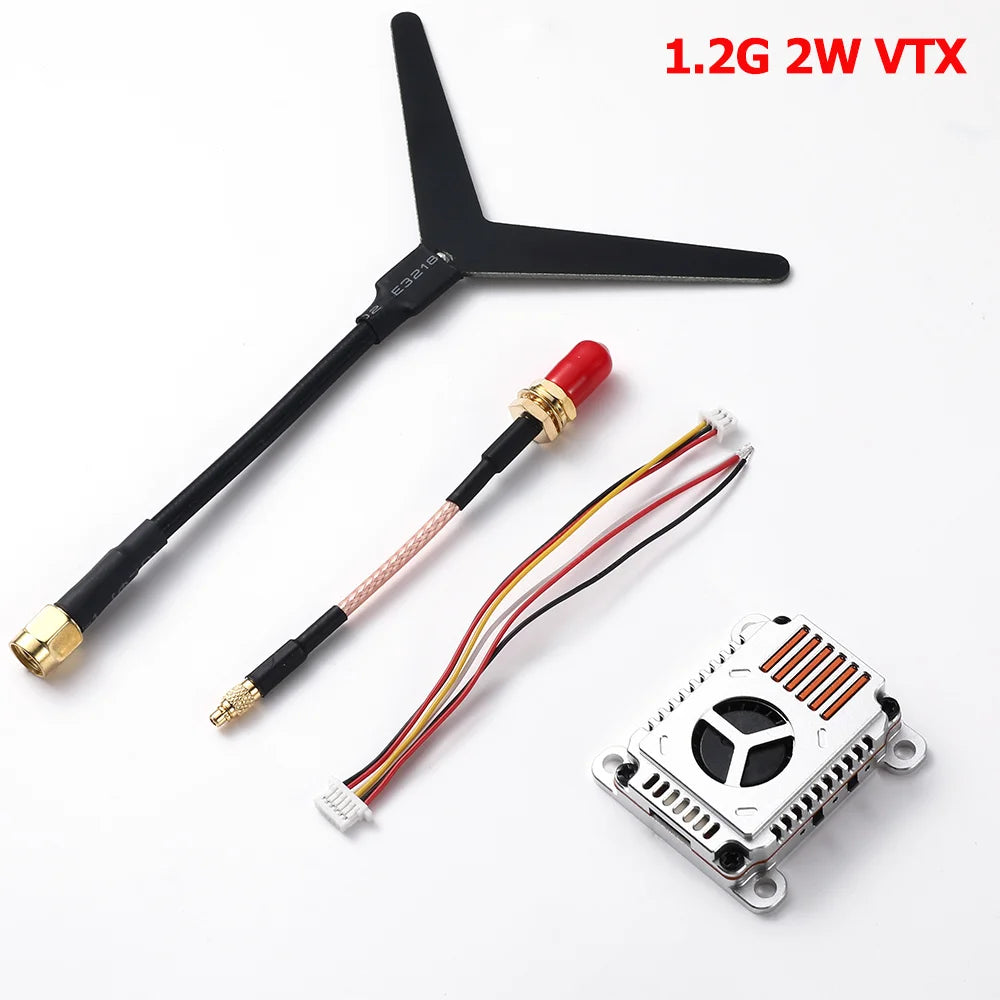

1.2G 2W VTX:

1. When installing the image transmission, it is necessary to leave space to ensure air convection around the module and ensure module heat dissipation; Otherwise, the module overheating protection will be activated, reducing power transmission and even shutting down power transmission.

2. It is recommended to ensure the correct voltage range and positive and negative poles before connecting the power supply to avoid burning out the components.

3. It is recommended to ensure that the RF output terminal has an antenna installed before connecting to the power supply, which can extend the service life of the module.

4. Please read the instruction manual before use, as this can correctly wire and extend the service life of the module.


Input Voltage: 7-36V DC;2-8S
Output Voltage: 5V 1A
12V Input Current: 235mA@Pitmode, 360mA@25mW, 880mA@2000mW,
Channels: 9CH (1060MHz-1380MHz)
Power: PIT/25/2000/mW
Antenna connector: MMCX Smart Audio: IRC-tramp Shell Material: Aluminum
Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(hole) Weight: 16g

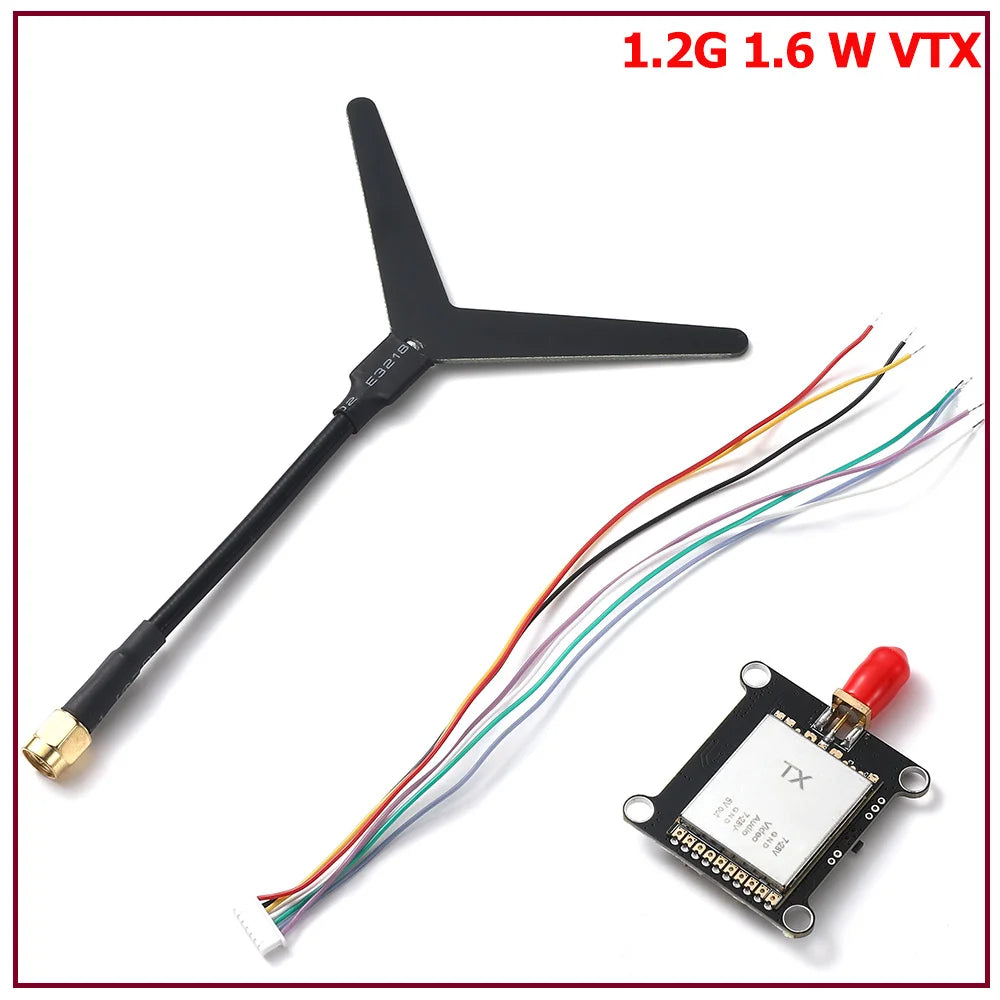

1.2G 1.6W VTX:

Video Input format: CVBS PAL/ NTSC
Frequency band: 1060-1380MHz
Channel Frequency: CH5-1240 CH1-1080 CH2-1120 CH3-1160 CH4-1200 CH6-1258 CH7-1280 CH8-1320 CH9-1360
Transmit Power: 14dB (25mW) 32dB(1600mW)
Input Voltage: DC 7-36V (3-6S Lipo)
Power Consumption: 400mA (±20mA)@12V
Operating Temp.: -10℃-+60℃
Dimension: 36mmx22mmx7mm
Weight: 10g (VTX)



Support wholesale! More discounts for larger quantities! Please contact our professional customer service!
